Explore our CE certified structural steel racks manufactured for heavy-duty load dynamics, maximum space utilization, and cold storage endurance.
Understanding European Norms (EN 15512), structural calculation models, and safety factors for industrial warehouse compliance.
When sourcing heavy-duty pallet racking systems from international suppliers, obtaining verified CE certification is not simply a regulatory formality—it is a baseline guarantee of structural safety, structural elastic limit resilience, and operational safety. In modern logistics hubs, storage systems must withstand severe dynamic stress, fork-truck impacts, seismic load transfers, and continuous load cycling. CE marking ensures that industrial steel racking complies strictly with European Standard EN 15512:2019 (Adjustable pallet racking systems - Principles for structural design) as well as supplementary codes EN 15620, EN 15629, and EN 15635.
Specifies limit state design rules for cold-formed steel upright profiles, beam connector locks, and floor anchor baseplates under combination load scenarios.
Integrated dynamic modeling evaluating structural rack behavior under seismic ground motion, mitigating longitudinal collapse and pallet dislocation risks.
Defines exact operational deformation thresholds for manual forklifts, VNA (Very Narrow Aisle) trucks, and automated stacker cranes.
A comparative structural analysis of industrial racking configurations, steel grades, and load-bearing parameters.
Modern warehouse facilities utilize diverse racking topologies depending on throughput velocity, SKU density, and floor area constraints. Select high-yield structural steel, such as Q235B or high-strength Q355B cold-rolled steel, guarantees that vertical upright frames maintain structural stability under point loads exceeding 20 metric tons per bay.
| Racking Type | Material Grade | Typical Load Capacity | Upright Profile Options | Primary Industrial Application |
|---|---|---|---|---|

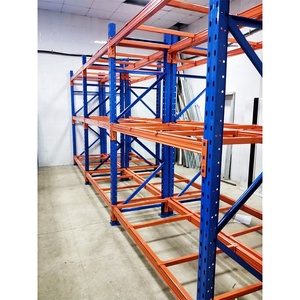

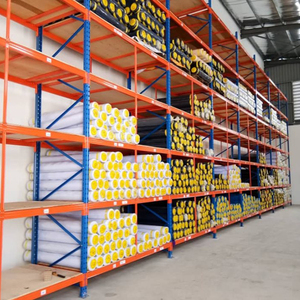

| Selective Pallet Racks | Q235B / Q355B Steel | 1,000 kg – 4,500 kg / Beam Pair | 80x60, 90x70, 100x70, 120x95 mm | 100% SKU Access, General Logistics, FMCG |
| Drive-In / Drive-Thru Racks | Q355B High-Yield Structural | 1,500 kg / Pallet Position | 90x70, 100x70, 120x95 mm Heavy Duty | High Density, Cold Storage, Batch Goods |
| Heavy Duty Longspan Racks | Q235B Cold Rolled Steel | 500 kg – 1,200 kg / Level | 55x47, 60x50 mm Step/Box Beam | Manual Picking, Automotive Parts, Hardware |
| Galvanized Cold Storage Racks | Hot-Dip / Pre-Galvanized Q235B | Up to 3,500 kg / Level | Anti-Corrosion Sealed Profiles | Deep Freeze (-30°C), Chemical, Food Supply |
Combining 50+ years of structural engineering heritage with automated precision manufacturing.
As a leading supplier of CE-certified heavy-duty storage racks, our manufacturing infrastructure is built upon decades of practical engineering expertise. Building upon a legacy established in 1976, we merge traditional craftsmanship with automated roll-forming and robotic welding technology to supply robust storage solutions for international markets.
Our facilities employ 16-stage continuous roll-forming production lines. Profile punching, bending, and upright column forming are completed automatically with sub-millimeter tolerances, guaranteeing perfect beam-to-frame locking alignment.
All load-bearing beam connector claws and baseplates are welded using multi-axis robotic welding cells. Full-penetration structural welds eliminate thermal deformation, enhancing beam shear resistance under maximum loading.
Components undergo an 8-stage pre-treatment wash (including degreasing, zinc phosphating, and nano-passivation) prior to receiving thermo-setting epoxy polyester powder coating. This delivers superior abrasion, chip, and corrosion resistance.
We eliminate purchasing guesswork. Our dedicated engineering design team provides complimentary 2D floor plans and 3D CAD rendered facility visualizations, optimizing aisle widths, safety clearances, and athlete/operator traffic flow.
Key innovations driving material handling efficiency, rack longevity, and supply chain automation.
The global warehousing landscape is undergoing a rapid transition toward higher density, automated retrieval, and dynamic operational flexibility. B2B buyers and logistics engineers must select structural racking equipment that not only fulfills immediate load requirements but can also adapt to next-generation logistics trends.
Transitioning from traditional selective racking to Automated Storage and Retrieval Systems (ASRS). Racking structures now double as the load-bearing framework for guided stacker cranes and autonomous mobile robots (AMRs).
Modern distribution centers demand modular, boltless heavy-duty racks. Adjustable beam heights (in 50mm or 75mm increments) allow facilities to rapidly reconfigure bay elevations as SKU volumes shift.
Environmental standards are pushing factories to adopt eco-friendly zinc-phosphate pre-treatments, low-energy powder curing ovens, and fully recyclable structural Q235B carbon steel profiles.
Essential structural, compliance, and procurement answers for international warehouse buyers.
A legitimate CE certificate for structural steel racking must be issued by an accredited EU Notified Body under EN 15512 or EN 1090 (Execution of steel structures). Request the manufacturer's Factory Production Control (FPC) certificate, Declaration of Performance (DoP), and third-party load test reports for complete validation.
Q235B carbon steel has a yield strength of approximately 235 MPa and is ideal for standard heavy-duty selective pallet racking. Q355B structural steel offers higher yield strength (355 MPa), allowing thinner profile walls to achieve equal or superior load capacity, reducing total frame weight and shipping costs for ultra-heavy duty configurations.
Our structural engineering design strictly follows EN 15512 standards, utilizing a 1.5 structural safety factor. This means if a beam pair is rated for 3,000 kg uniformly distributed load (UDL), the theoretical structural yield point is designed for 4,500 kg, preventing structural failure during temporary shock loading.
Yes. For sub-zero cold storage facilities (-20°C to -30°C), we recommend hot-dip galvanized steel or specialized low-temperature powder coatings. Hot-dip galvanizing provides a protective zinc coating (60-80 microns thick) that resists humidity, rust, and thermal expansion fatigue without flaking.
Vertical upright frames and horizontal beams are bundled using heavy-duty steel strapping, protective corner edge guards, and plastic film wrapping. Small hardware (baseplates, safety pins, expansion bolts) are packed in reinforced wooden crates or heavy export cartons to ensure complete protection during sea freight.
Yes. Simply share your warehouse floor dimensions, clear ceiling height, forklift specifications, and target pallet dimensions. Our engineering team will produce a detailed 2D CAD layout and 3D rendering optimized for maximum storage density and operational flow.
Connect with our structural design engineers today for OEM/ODM factory-direct pricing, custom CAD layouts, and complete CE certified racking solutions tailored to your operational budget.
